Recurring drain clogs in older Bellevue homes: cast iron and bellies

Three structural causes, not one bad clog

Three patterns produce 90 percent of the recurring clogs we see in pre-1985 Bellevue homes: tuberculation inside aging cast iron drain stacks (narrowing effective diameter and catching debris), bellies in horizontal drain runs caused by settlement of glacial-till soils common across the Eastside, and undersized venting installed before the 1980 code changes that made loop vents and air-admittance valves more restricted. The diagnostic that distinguishes them is a sewer camera — not another cable visit.

The 'just snake it again' approach makes sense when the underlying pipe is healthy and a one-time debris accumulation needs clearing. It does not make sense when the pipe itself is the problem — and the older the home, the more likely the pipe is the problem. A third clog in 18 months at the same spot in the line is a structural signal, not a usage signal.

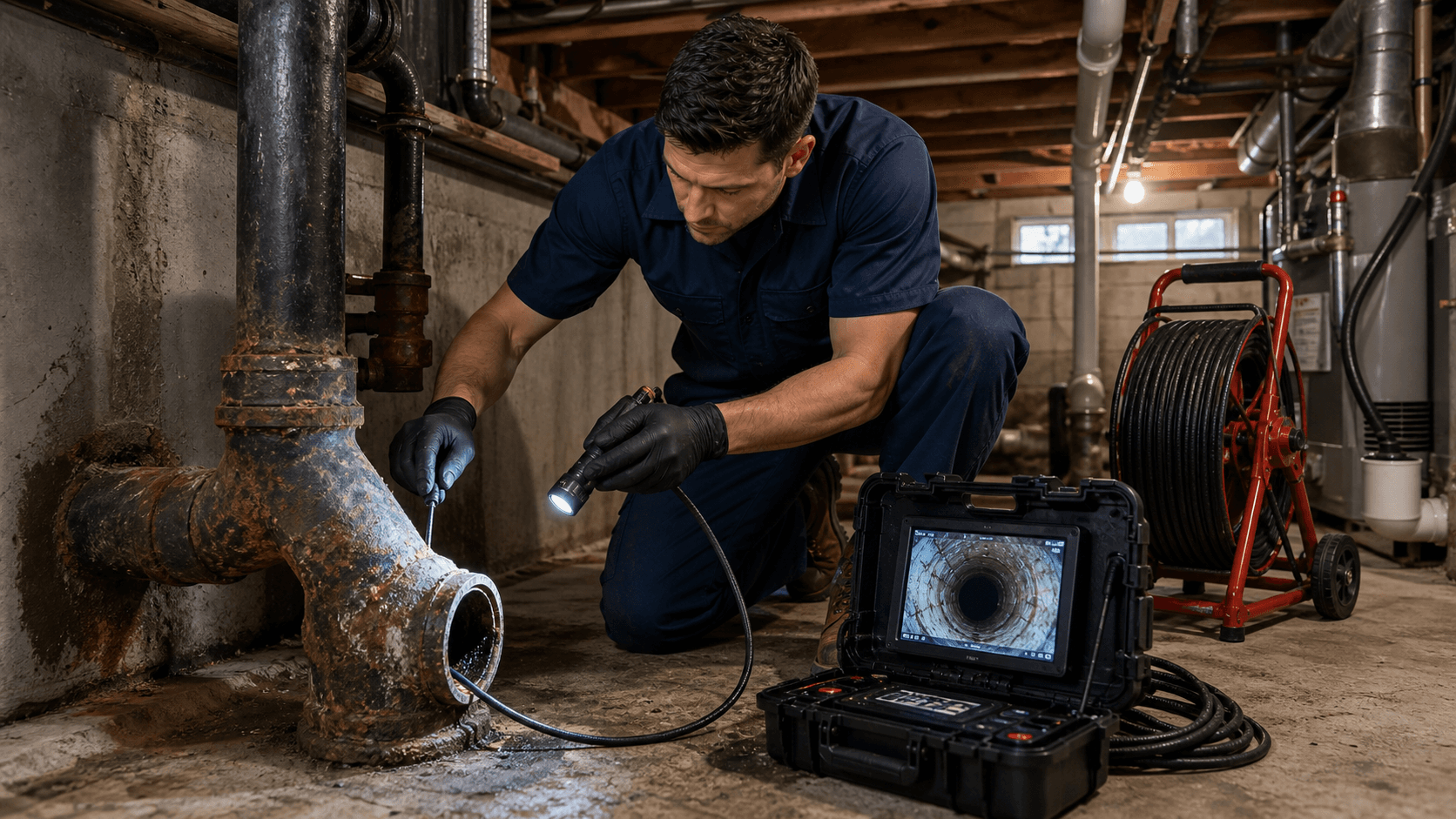

Each of the three patterns has a specific diagnostic signature on a sewer camera. Tuberculation looks like rough orange-brown growth covering the interior pipe wall, narrowing the visible diameter compared to the smooth interior visible at PVC sections. Bellies appear as standing water sitting in a low spot of the pipe, with the camera floating through it rather than scraping the bottom. Vent issues do not appear on the camera at all but manifest as gurgling toilets, slow drains in multiple fixtures despite no visible clog, and trap siphoning that lets sewer gas into the home.

Bellevue's median home construction year is 1982 per City of Bellevue Community Development data. More than half the housing stock was built in the 1950s and 1960s. Half of all Bellevue homes are now in the structural-clog window where another cable is not the answer.

Cast iron drain stack tuberculation — what is actually happening inside

Cast iron drain stacks in pre-1980 Bellevue homes corrode from the inside out under decades of wastewater exposure. Rust nodules called tubercles grow on the interior pipe wall, narrowing effective diameter from the original 4 inches to as little as 2.5 inches in worst-case 60-year-old installations. The rough interior surface catches grease, soap film, and food debris that would pass through a smooth PVC line cleanly. Once tuberculation passes a certain threshold, the line clogs reliably regardless of household usage habits.

Cast iron drain pipe was the residential standard from 1900 to 1980. Manufactured in 5-foot bell-and-spigot lengths, joined with lead and oakum, with branch fittings tied in to a vertical main stack running the height of the house. Strong, fire-resistant, quiet under flow. The trade-off is interior corrosion under wastewater exposure.

The corrosion mechanism is well documented in the American Society of Plumbing Engineers literature. Wastewater contains organic acids and dissolved oxygen; both attack the iron at the pipe surface. The iron oxidizes (rusts) and the oxide forms a layer on the pipe wall. The layer grows outward into the pipe interior, creating tuberculation. Tubercles are not smooth — they're irregular nodular growths that range from 1/4 inch to over 1 inch in thickness in the worst cases.

A 60-year-old 4-inch cast iron stack in a 1965 Lake Hills home today has effective interior diameter of 2.5 to 3 inches in the worst sections. The pipe walls themselves may still be structurally sound, but the cross-sectional area available for flow is 60 to 70 percent of original. Routine grease and debris that would pass through a 4-inch line clog the constricted line within months.

Tubercles also break off intermittently during heavy flow (laundry, dishwasher, multiple fixtures simultaneously). Loose rust chunks travel downstream and lodge at the next constriction, creating secondary clogs that look like new problems but are actually consequences of the underlying tuberculation.

Bellies in horizontal drain runs from soil settlement

Bellevue sits on a mix of glacial till, outwash, and clay-loam soils that have settled over decades. Horizontal drain runs installed at the original 1/4-inch-per-foot grade in the 1950s through 1970s have settled into negative grade in spots — creating bellies where water pools instead of flowing through. Pooled water accumulates sediment; sediment narrows the line; the line clogs at the same spot every time. Bellies are particularly common in Lake Hills, Crossroads, and East Bellevue ranch-style homes with long horizontal drain branches running through floor joists or crawlspace.

Plumbing code requires drain lines to have a minimum 1/4-inch-per-foot slope toward the main stack — enough fall to keep water flowing and carry solids with it. A 20-foot horizontal kitchen drain installed in 1972 had 5 inches of total fall from sink to stack. After 50 years of soil settlement, hanger sag, and joist deflection, that same line might have 3 inches of fall in some sections and zero or negative fall in others.

Where the fall goes negative, water pools. Pooled water lets sediment (food particles, soap film, hair, grease droplets) settle out and accumulate on the pipe bottom. The accumulation reduces effective diameter at that specific spot. Every subsequent drainage event has to push through the constriction, and the line clogs there reliably.

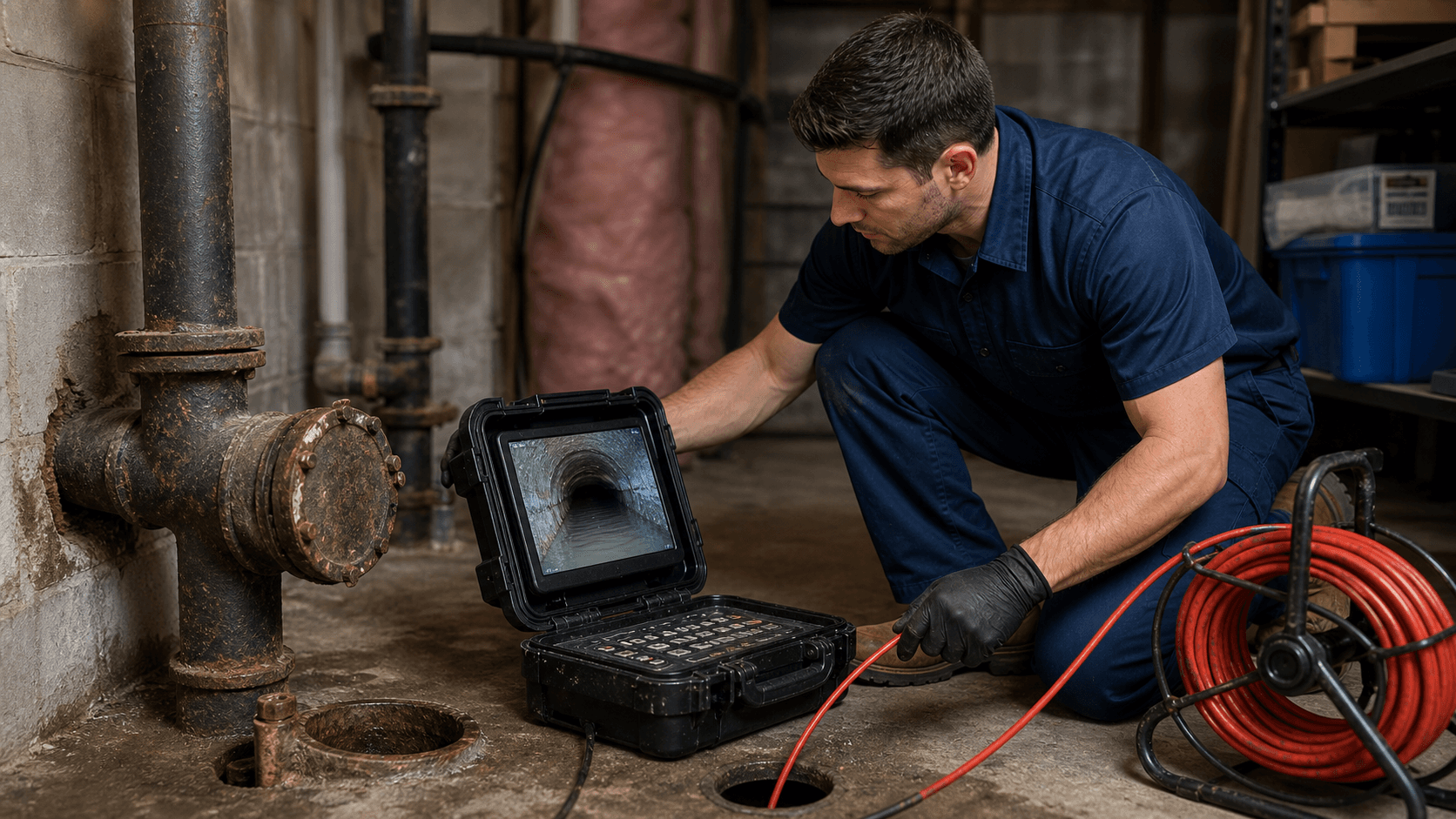

On a sewer camera, a belly is unmistakable: the camera enters a section where it submerges in standing water and floats through, then exits back to dry pipe. The plumber measures the belly length and depth, locates the spot with a sonde transmitter, and marks it for spot repair. The only durable fix is excavating to the belly section and re-laying with proper grade — cabling or jetting will clear the immediate clog but the belly remains and re-collects sediment within weeks.

Bellevue neighborhoods with the heaviest belly patterns: Lake Hills (built on glacial-till slopes that settled differently as houses aged), Crossroads (long horizontal drain runs in single-story ranchers), East Bellevue around the original 405 corridor (mixed soil with localized clay pockets that compress over time), and Newport Hills (steep grade where original installations were marginal on slope to begin with).

Pre-1980 undersized venting — the problem nobody mentions

Plumbing vents balance air pressure in drain lines, allowing water to flow without creating suction that empties traps. Pre-1980 Bellevue homes were often built under earlier code revisions that allowed loop vents (single vent serving multiple fixtures), undersized vent stacks, and configurations that current code (WA Plumbing Code Chapter 51-56) does not permit in new construction. The result in 50-year-old homes is venting that worked acceptably when the home was new and is now marginal — producing gurgling toilets, slow drains, and recurring trap siphoning that the homeowner reads as 'clogged drain' even though the actual issue is air pressure.

The mechanical function of a plumbing vent is to admit atmospheric air into the drain line behind the wastewater as it flows. Without venting, a slug of water flowing down a pipe creates negative pressure (suction) behind it, which pulls water out of any nearby fixture trap. An empty trap lets sewer gas into the home and produces the unmistakable sewer smell coming up from a sink or shower drain.

Pre-1980 code permitted vent configurations that current code would not approve. Common pre-1980 patterns in Bellevue homes: a single 1.5-inch vent serving an entire bathroom group (sink, toilet, tub) where current code requires individual vents or larger common venting; loop vents wrapping back into the drain stack below an upper-floor fixture; air-admittance valves (AAV) used as primary venting rather than for retrofit-only applications.

The symptom pattern is consistent: drains that empty slowly without any visible clog, toilets that gurgle when a different fixture drains, traps that intermittently lose water and let sewer gas through, multiple fixtures showing the same slow-drain behavior despite cabling that came up clean. A plumber called to 'unclog the drain' will cable the line, find no obstruction, and tell the homeowner 'it's clear.' The drain is clear; the venting is the problem.

Fixing pre-1980 venting requires permitting the upgrade through City of Bellevue Development Services and running new vent piping to current code. The work is straightforward for accessible vents but can require opening walls in finished spaces. Typical cost is $1,400 to $3,800 depending on accessibility — substantially more than another cable visit, but the right answer for chronic gurgling and trap siphoning issues.

The decision rule: when to stop authorizing cleaning and start authorizing repair

Three clear triggers to authorize repair instead of repeat cleaning: a third clog at the same spot within 18 months, any camera finding of a belly or significant tuberculation, or persistent gurgling and trap siphoning that cabling cannot resolve. For homes built before 1980, also add: any sewer-lateral camera showing Orangeburg pipe (which fails regardless of cleaning frequency and requires replacement, covered in our cedar-root-intrusion guide).

The economic logic favors repair in every case where the cause is structural. Three cable visits at $345 each over 18 months total $1,035 — and the underlying problem remains and will produce more visits. A spot repair on a localized belly runs $2,800 to $4,800 and solves the recurring clog permanently. A cast iron drain stack replacement on a single-story rambler runs $3,500 to $8,500 (depending on accessibility) and adds another 50 years of drain performance. CIPP lining on a horizontal drain run with multiple bad joints runs $4,500 to $9,000 and seals all joints simultaneously without excavation.

What does NOT make economic sense: continuing to authorize cleaning visits when the camera has documented a structural cause. Most Bellevue homeowners eventually pay for the repair regardless — the only variable is how many cleaning visits they pay for first. Recognizing the structural pattern earlier saves the cleaning costs.

The hydro jetting vs cabling in Bellevue guide also walks through the cleaning-versus-repair decision for sewer-lateral specific cases. For internal drain-stack and venting issues, the diagnostic and repair path is similar but the work scope differs — drain stacks require pulling drywall in finished walls, sewer laterals are accessed from outside the building.

If you've had a plumber out twice for the same clog and they have not run a camera, the next call should be specifically to have the line camera-inspected before authorizing any more cleaning. A reputable Bellevue plumber will quote $295 for a camera-only visit, show you the footage on the spot, and recommend the appropriate next step based on what the footage shows. Avoid any plumber who proposes a third cabling visit without first proposing a camera.
